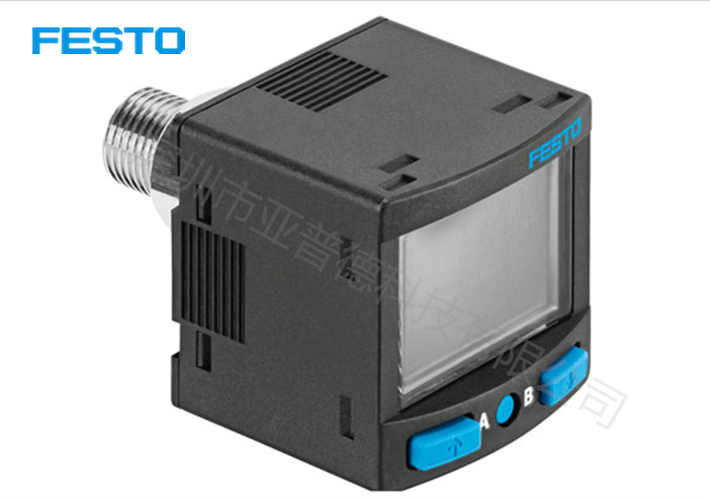

to grant authorization

RCM Mark
c UL us - Listed (OL)

CESymbol(Refer to the applicable standards)

According to EU-EMVguiding principle

Certification issuing department

UL E322346

Material remarks

Compliant with RoHS

Measure variables

Relative pressure

Measurement method

Piezoresistive pressure sensor

Pressure measurement range, initial value

-1 bar

Pressure measurement range, final value

1 bar

Overload range

5 bar

Working medium

Compressed air complies with ISO8573-1:2010 [7:4:4]
inert gas

Explanation on Work and Lead Medium

Lubricated compressed air can be used

Medium temperature

0 50 °C

ambient temperature

0 50 °C

Accuracy, FS

1.5 %FS

Repetitive accuracy zero point, in ±% FSexpress

0.3 %FS

Temperature coefficient, measured in ±% FS/Kexpress

0.05 %FS/K

Switch output

2 x PNPor2 x NPNConvertible

Switch function

window comparator
Threshold comparator
Automatic differential monitoring

Switching component functions

N/CorN/Ocontact,Switchable

Maximum output current

100 mA

Short circuit strength

yes

Working voltage range DC

15 ... 30 V

Polarity fault-tolerant protection

For all electrical interfaces

Electrical connection

Plug
Block shaped structure
4needle

Electrical interface 1,Interface type

Plug

Electrical interface 1,Interface technology

Interface form L1J

Electrical interface 1,Pin Pin/The number of lines

4

Installation type

Front panel installation
Threaded
Wall surface/Surface fixation

Assembly position

arbitrarily

Pneumatic connection

Male thread R1/8
Female thread M5

Product weight

46 g

Material information, shell

PA-strengthen

Display type

Luminous LCD

Units that can be displayed

MPa
bar
inchH2O
inchHg
kPa
kgf/cm2
mmHg
psi

Set options

Teach-In
Through display devices and buttons

Prevent misoperation

PIN-Code

Range of critical values

0 100 %

Delay setting range

0 90 %

Protection level

IP40

Corrosion resistance grade CRC

2 –Moderate corrosion impact
