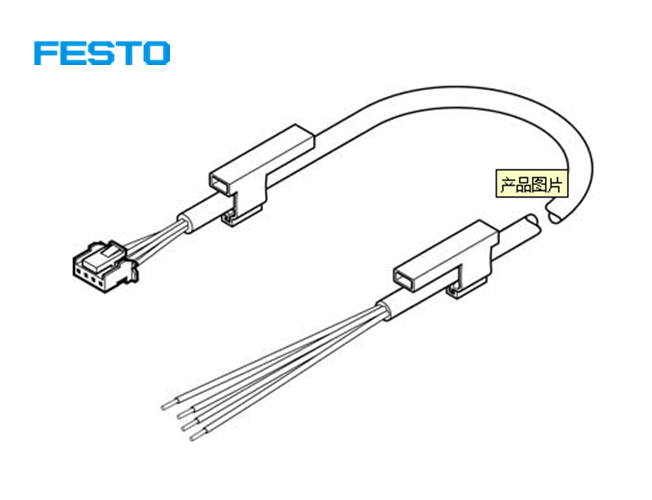

Electrical interface 2

Open end, 4core

Working voltage range DC

0 30 V

40°CAcceptable current load at time

1 A

Electrophoretic intensity

0.8 kV

Cable length

2.5 m

Cable properties

standard

Testing conditions for cables

Bending strength meets Festo standardsstandard
The testing conditions are determined according to the needs

Cable diameter

4.1 mm

Cable structure

4x0,14

Rated cross-section of conductor

0.14 mm2

Color coding,Cable core insulation

blue
brown
black
white

Protection level

IP40

ambient temperature

-20 ... 60 °C

Environmental temperature during installation with elastic cables

-5 ... 60 °C

Material remarks

Does not contain brass and PTFE
Compliant with RoHS

class of pollution

2

Corrosion resistance grade CRC

4 –Super corrosion impact

Material information, cable sheath

PVC

Cable jacket color

grey

Material information, shell

PA

Material information, insulation layer

PP
