Advantages and characteristics:

1.fastAuto focusNo need for manual adjustment, professional1080PFull HD display

2.Powerful optical zoom

3.30Multiple (optional)40(Multiple times)Full HD optical zoomBetter depth of field, with a maximum magnification of up to300Multiple times, maximum field of view 310x178mm，Wide field of visionCapture the details at a glance.

4.Image capture,No setting required, one click to take high-definition photos. The system hasPowerful application detection function, can provide full screen detection, split screen comparison (vertical or horizontal), perspective comparison,LiveDiversified testing needs such as real-time detection of gold samples.

5.Precise measurement, rich software functions

6.Ultra long working distancethe height is 280mm，The system is equipped with DPThe interface can be directly connected to the monitor, compared toHDMIInterface data is more stable and images are clearer;USBCan be directly inserted UOne click photo taking on the disc;MiniUSBCan achieve computer and DPBidirectional output, observation and measurement do not affect each other;
LANThe interface can connect to the Internet and share pictures and documents easily.

7.Static protection and load platform:Both the body and platform are equipped with ESDProtection, standard platform size 420x410mm, optional 3D rotation platform (diameter) 220mm）.

8.ExcellentErgonomic DesignCompletely bid farewell to eye fatigue, dizziness, and other adverse feelings under binoculars, and adopt a correct sitting posture to relieve fatigue in the shoulders, spine, and back.

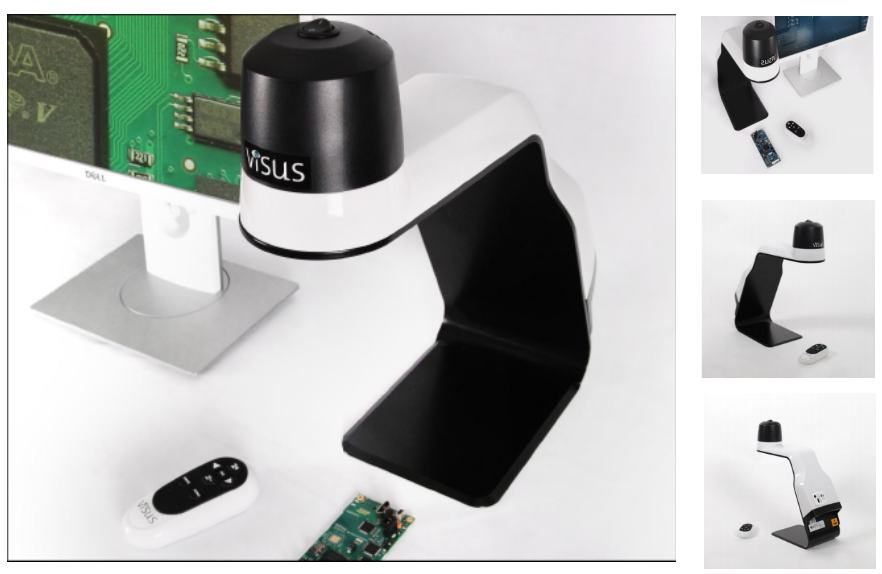

CMORE Plus

Magnification factor        2~300times

Working distance        280mm

Frame rate            60frame/second

Field of view        310*178mm

Platform size        420*410mm

lighting            Multiple sets of high brightnessLED

operating system        Win10 64Professional version

output            DP/USB/MiniUSB/LAN

monitor          22or24 inch

Power Supply            220V/29W

weight            5KG

External dimensions        W 420mm D 410mm H 350mm
